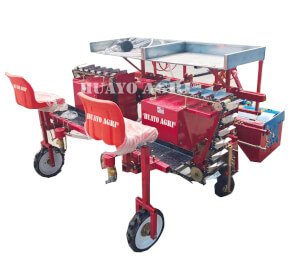

HYZSP-2 Sweet Potato Planter Machine is multifuncton Sweet Potato Seedling Transplanter for big farms.  It  combines Transplanter, Fertilizer, Rotary tillage and ridge-making machine , Irrigation Drip Tape Layer,  Plastic Film Cover and Watering System together and transplant the Seedlings obliquely on Ridges .

Sweet  Potato is an important  food  crop  with  high nutritional, medicinal and economic values, which can be used in food  processing,  chemical  industry, medical treatment and so on.

According to the planting mode of sweet potato, sweet potato grow seedlings should firstly be carried out with seed potatoes according to the requirements of agronomy, and then transplanted into the soil.  Hence, sweet potato transplanting is one of the most important links during  the  whole  process of sweet  potato  production . Compared with  transplanting  without  mulch  film,  transplanting  with  mulch film  not  only  keeps  the  soil  warm  and  moist  restraining  the infestation  of  pests  and  weeds,  but  also  promotes  the  growth  ofsweet potato seedlings, which further increases the fruiting number of tubers and  boosts the yield.

Which part will the transplanter plant ?

The Sweet Potato Transplanter Machine will plant Sweet Potato Slips, or sweet potato vines  to the raised ridges effectively.  It will save 80% labour cost for Sweet Potato Farms.

What is the advantages of Obilique Transplanting ?

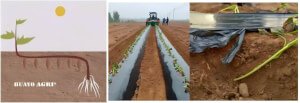

At present,  most Sweet Potato Transplanting  machines do transplanting  vertically or horizontal transplanting.  Compared  with  vertical  and horizontal  planting, oblique planting could  harvest higher commodity  rate (uniformity of sweet potato sizes) and more tubers per plant.

How do HYZSP-2  Sweet Potato Transplanter plant the Seedlings ?

Some Seedling transplanter machines cannot plant on mulch  film,  and others can’t plant the Sweet Potato Seedlings obliquely.

The HYZSP-2 Sweet Potato Transplanter have special designed Clips with Crank Rockers . They can pick up the Seedlings precisely from Clamps and plant to the raised ridges properly with oblique planting.

The tractor drives the Transplanter, Fertilizer, Rotary tillage machine , Irrigation Drip Tape Layer,  Plastic Film Cover and Watering System together. All the functions are completed at one time. Therefore, it will maximize the work efficiency, and achieve the best planting performance.

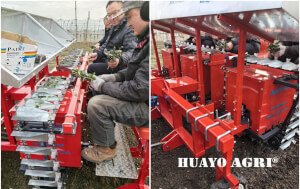

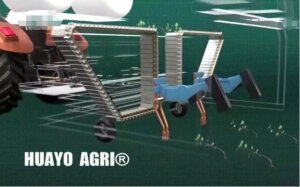

When transplanting, the assistant seedling Feeder separates the potato seedlings and places them one by one on the corresponding seedling position of the conveyor belt. It transport the potato seedlings to the bottom seedling position. Then The seedling clamp clips the potato seedlings from the seedling position and inserts them into the soil. The movement trajectory of the seedling clamp determines the potato seedling transplanting form (oblique transplanting, boat-bottom transplanting).

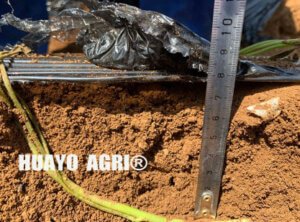

The clip-type Sweet Potato Transplanter adopts the cutting clamp seedling transplanting method, It can not only do ridge transplanting without film covering, but also can transplanting on ridge with film covered. What’s more, the transplanting depth can adjust by setting the depth limiting wheel height. Since the conveyor belt length and seedling position are fixed, the row spacing and plant spacing are fixed. We will customize the required row spacing and plant spacing according to customer needs.

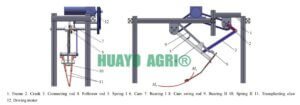

The Crank Rocker move up and down uniformly.  It take the clips to pick up Sweet Potato Seedlings precisely from Clamps.

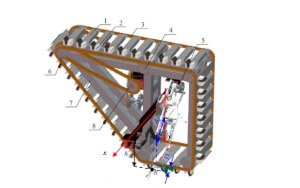

Conveyor Belt with Clamps hold Sweet Potato Seedlings and transit to the bottom.

When the Sweet Potato Seedlins move near to Conveyor belt Clips.  the Clips pick up the Sweet Potato seedlings and inserts them into the raised ridges.

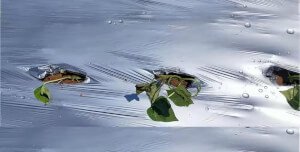

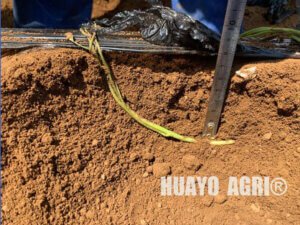

The Sweet Potato Seedlings are planted obliquely uniformly to the raised planting bed.

Working Video

Specification

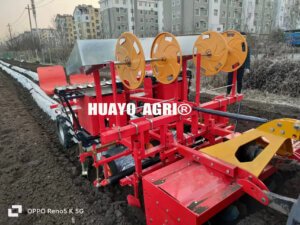

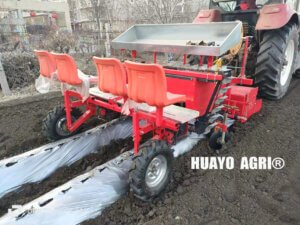

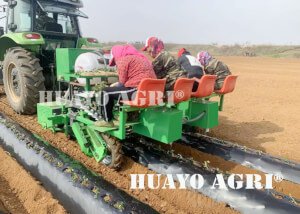

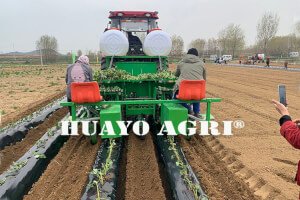

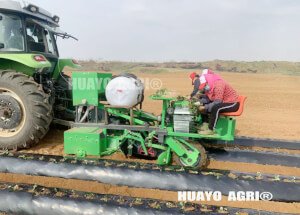

Testing The Transplanter in the field

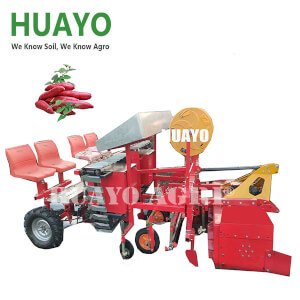

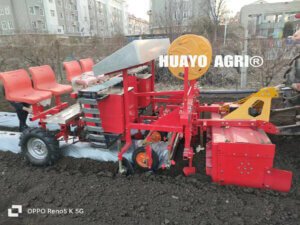

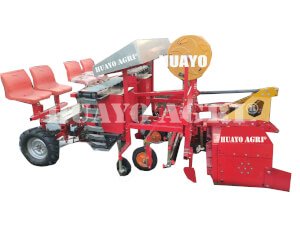

HYZSP-2S Sweet Potato Transplanter combines Fertlizer, Rotary Ridger, Transplanter, Plastic Film Cover, Drip tape layer in one.

Sweet Potato Slip
