HYZ-4 Vegetable Seedling Transplanter is most ideal transplanting machine for various vegetables, like Pepper, Tomato, Carrot, Lettuce etc.

The HYZ-4 Vegetable Seedling Transplanter is a highly versatile agricultural machine, recognized as an ideal choice for transplanting various vegetable seedlings. It is widely applicable to common crops such as peppers, tomatoes, carrots, and lettuce, perfectly matching the needs of multi-variety vegetable planting scenarios.
Its core value lies in solving the inefficiency of manual transplanting. First, it ensures uniform seedling spacing and consistent planting depth, which helps improve the survival rate of seedlings and lays a foundation for neat growth and unified harvesting later. Second, it significantly reduces labor input—one machine can replace the workload of multiple workers, greatly shortening the transplanting cycle and ensuring that seedlings are planted in the optimal growing period.
Whether for small family farms or large-scale vegetable planting bases, the HYZ-4 can adapt to different field conditions, making it a practical tool to promote the mechanization and efficiency of vegetable production

Technical Parameter of the Vegetable Seedling Transplanter

Model HYZ-1 HYZ-2  HYZ-4
Planting line NO. 1 2 4
Tractor power 30HP 50HP 50HP
Transplanting plate 1 2 4
Working labor 1 2 4
Capacity(hectare/day) 1.5-2 2-3 4-6
Ideal Seedling length 5-35 cm
Row spacing 25-100 cm
Plant-to-plant spacings 25-100 cm

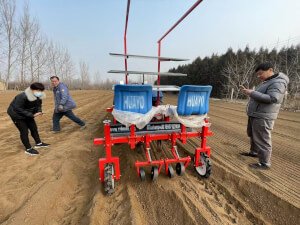

HYZ-2  Two Row Vegetable Transplanter

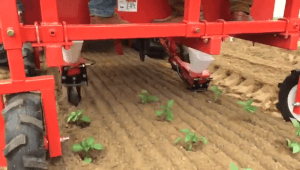

3 Row Cabbage Transplanter

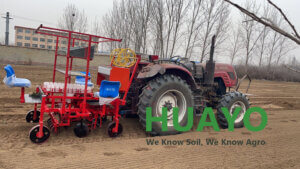

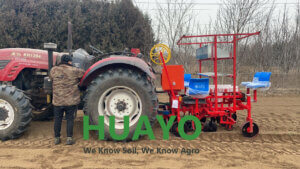

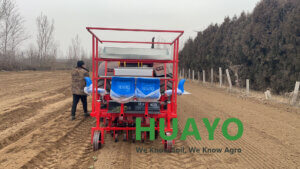

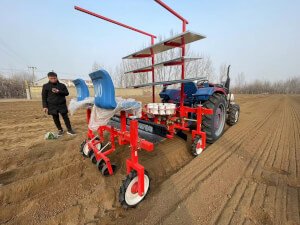

HYZ-4 4-Row Vegetable Transplanter with Fertilizer, Irrigation drip tape layer and mulch cover

Working Principle:

the Crankshaft connecting rod converts the main shaft’s rotational motion into reciprocating motion, driving the duckbills to move up and down for planting.

Transplanting Process:

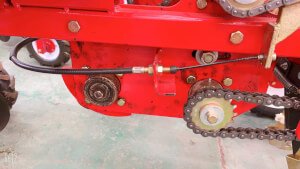

Power from the tractor’s PTO travels through the gearbox to the dual-crank main shaft of the planting drive.

The main shaft’s rotation converts to the duckbills’ up-and-down motion via the double crank connecting rod mechanism.

Combined with the tractor’s forward movement, it ensures the duckbills lift and lower vertically for upright seedling planting.

At the top dead center, the duckbills close as the seed cup’s bottom cover opens, letting seedlings drop into the duckbills.

Moving downward to the bottom dead center, the duckbills penetrate the soil with the seedlings’ roots.

As the duckbills rise back, they open to release seedlings into the holes, which are then covered with soil.

The machine operates continuously to carry out non-stop transplanting work.

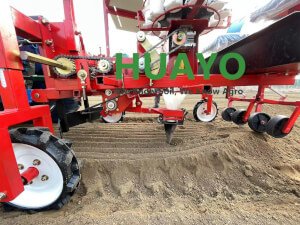

Duckbill

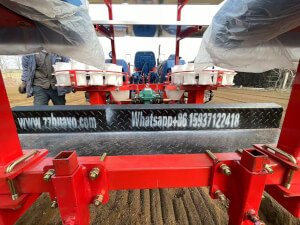

Seedling Feeding

When you transplant,  drop the Hemp Seedling to the Seedling Cup.  We use a horizontal seedling feeding device, allowing ample time for seedling placement to reduce missing rates and boost transplant efficiency. The transplanting and watering units move in sync, ensuring precise co-location of planting and watering in the same hole.

Transplanting Performance

Pepper

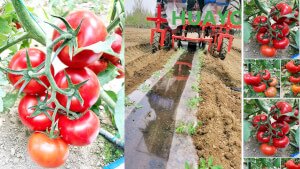

Tomato Transplanted on plastic film

Lettuce Farm

Cabbage Field

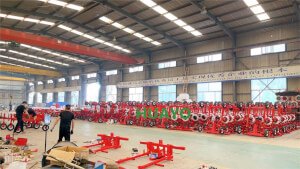

Vegetable Transplanter ready for delivery
